- Hign-concerned Chemical: None
- Capacity: 10 – 20Ah
- Voltage: 48V/52V
- Type: Lithium Battery
- Brand Name: tooefft
- Origin: Mainland China
- Certification: CE,UL
- Rate Capacity: 48V 13Ah/16Ah/17Ah/17.5Ah 52V 17.5Ah
- Battery Model: DCH-009
- Battery Type 1: folding electric bike battery
- Battery Type 2: electric bicycle lithium battery
- BMS: 25-30A

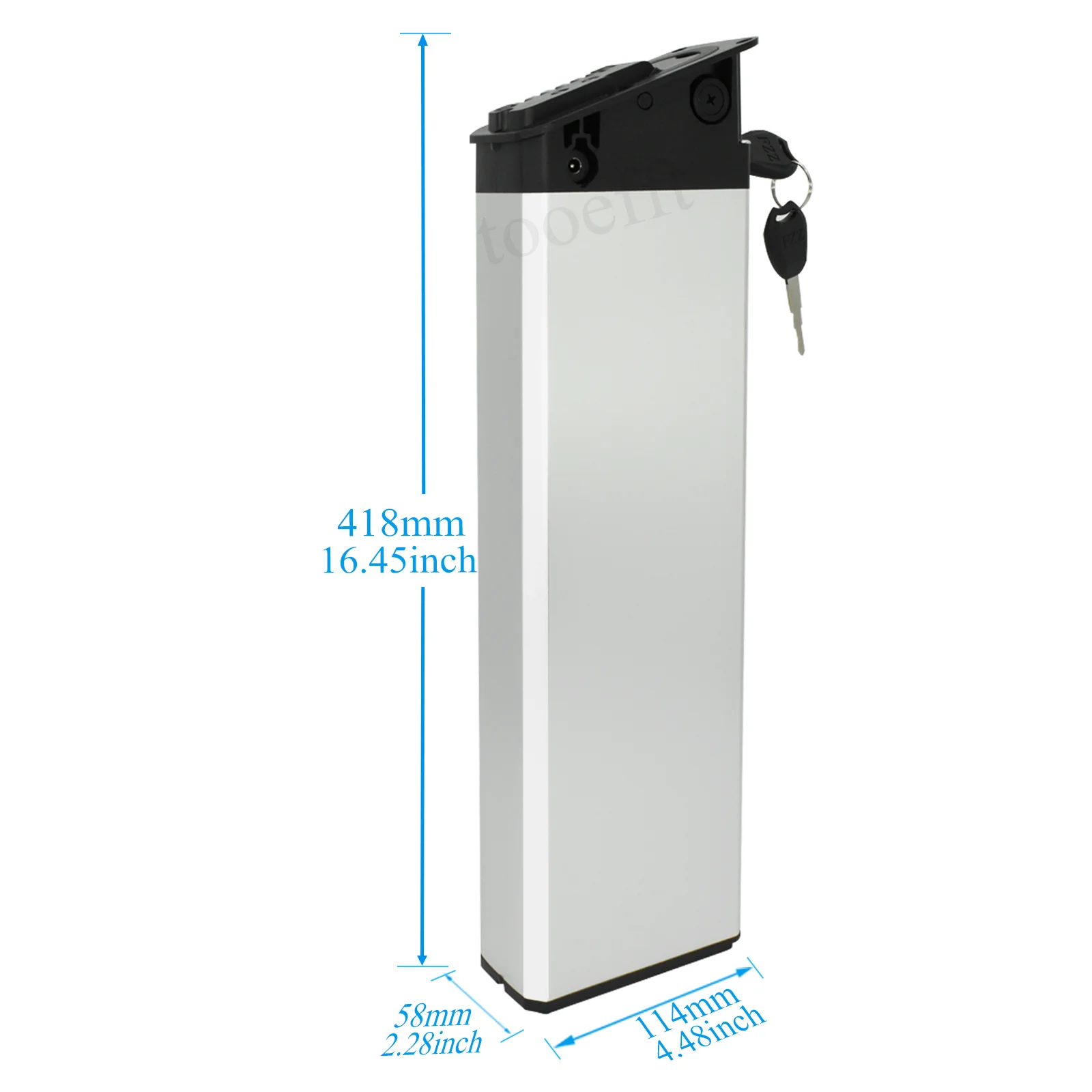

- Battery Size: 58*114*418mm
- Cycle Life: 800-1000 cycles
- Fit for Motor: 0-1000W
- Fit for Bike1: Mate X ; LANKELEISI X3000PLUS
- Fit for Bike2: CMACEWHEEL RX20/RX20 MAX
- Fit for Bike3: ENGWE Engine Pro ; ENGWE Ep-2 Pro
- Fit for Bike4: LAOTIE FT100 ; Polarna M5/M6
- Manufacturer Warranty: 1 year
48V 52V Lithium ion Batteries for LANKELEISI X3000PLUS ENGWE Engine MATE X Polarna M5 M6
About this item
【Product Parameter】 Battery Size: 418mm x 114mm x 58mm. Rated voltage：48V Rated capacity：13Ah/16Ah/17Ah/17.5Ah optional Rated voltage:52v Rated capacity:17.5Ah Fits for 0-1000w motor.
【Fits for ebike】Compatible for Mate X, CMACEWHEEL RX20, Lankeleisi x3000plus, LAOTIE FT100, TESGO Hummer Pro, and more…
【BMS Protection Board】 The battery has built-in 25A/30A BMS and built-in battery, Preventing over charge, over discharge, over current and short circuit, ensuring the long life expectancy.
【High-end Quality】Made of Grade A cells. Every Lithium battery have pass the QC appearance and function test before shipment.The Ebike battery charge cycle exceeds 1000 times, ≥80% capacity after 800 cycles.

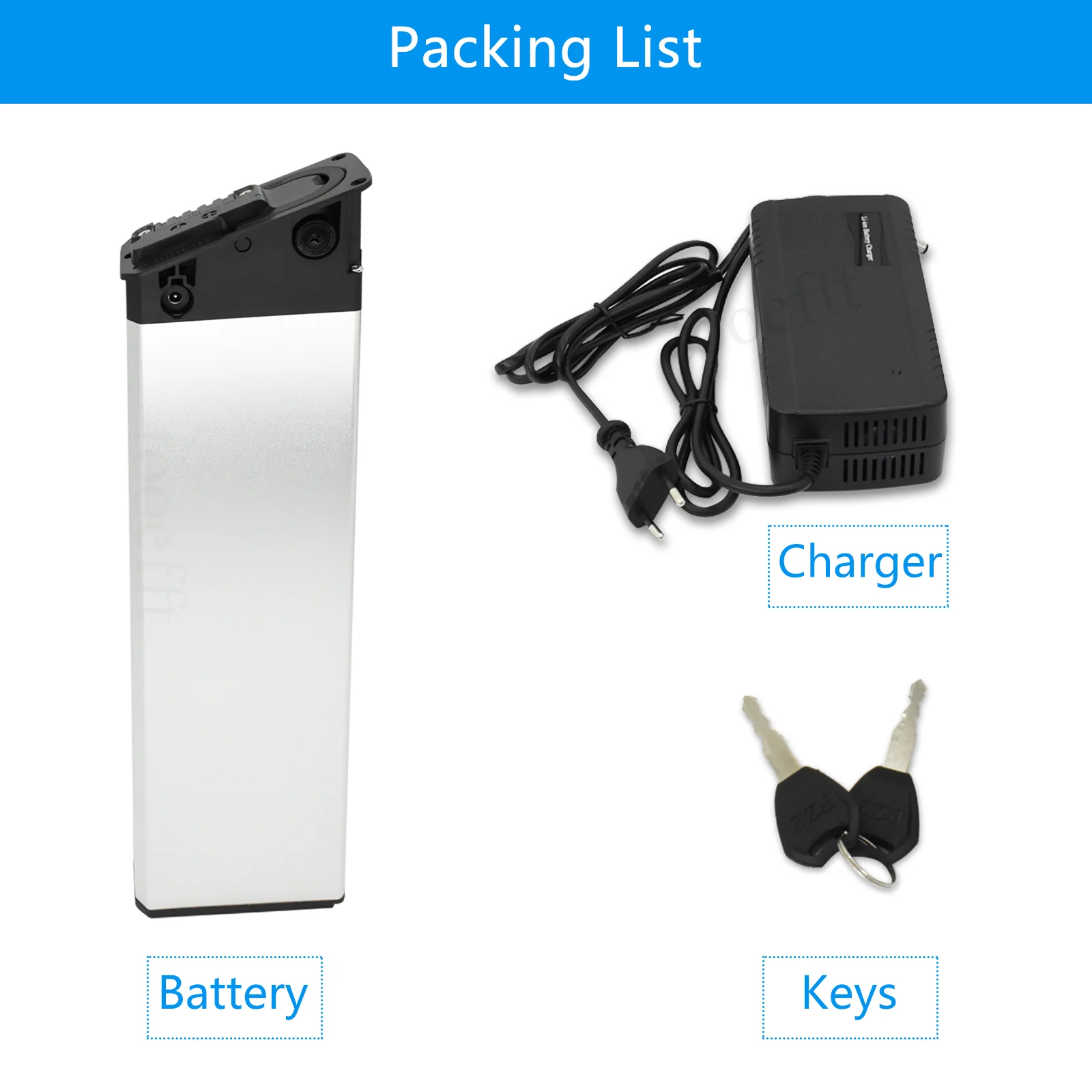

Packing List:
1x Battery
1x Charger
2x Key

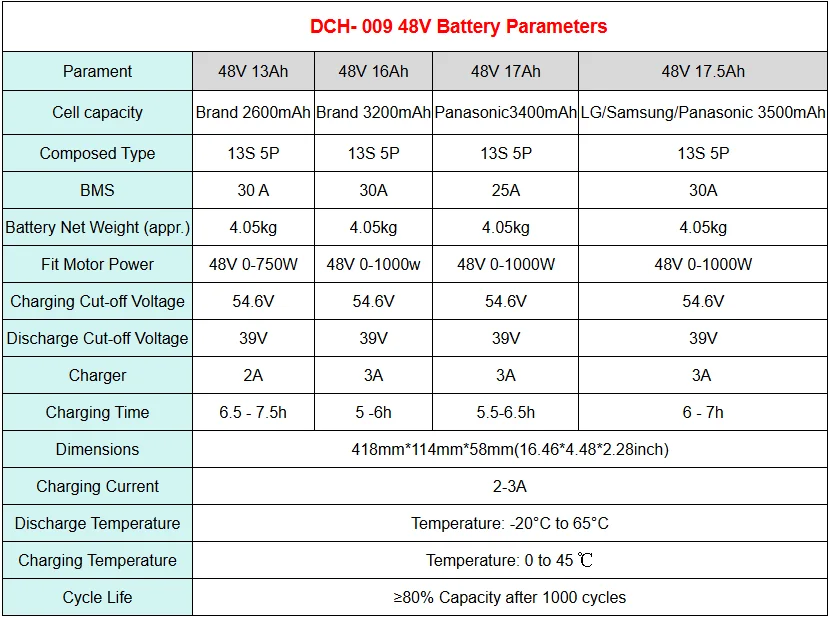

1.Rated Voltage 48V Battery Parameters
2.Rated Voltage 52V Battery Parameters
This battery is suitable for the following ebike models:
MATE X
LANKELEISI X3000PLUS
CMACEWHEEL RX20/RX20 MAX
ENGWE Engine Pro （High Performance）
ENGWE Engine Pro (16 Ah Version)
ENGWE Ep-2 Pro（13 Ah Version）
LAOTIE FT100
Polarna M5
Polarna M6
TESGO Hummer Pro
BEZIOR XF200
New JINGHMA R7
Ridstar H20
VITILAN I7PRO
ENGWE Engine X
ENGWE Engine X-plus
vakole c020
ACCOLMILE RHINO
ACCOLMILE RED CIRCLE
BLACK PANTHER
Cyrusher XF690MAXS
New lafly X3 and more…
Note for Engine Pro/Engwe ep-2/ep-2 pro/ BEZIOR XF200 ebike
Old version ebike used with DCH-006 (42 x101x 430mm) thinner battery;
New version ebike used with DCH-009 (58 x114 x 418mm) fatter battery.
Current item is DCH-009 Battery.
If you can’t sure what version of your ebike and can’t sure which battery to choose, Send us your old battery photos, we’ll check for you.
Please note:If you are unsure if this battery is suitable for your ebike, or if your ebike brand is not listed in the above models, please send us a message.
The content of the message should include as detailed as possible the parameters of your electric bike.
For example, the brand and model of your ebike. Or there may be certain parameters on your old battery, and please measure the size of your old battery as detailed as possible, and then you just need to take a photo of these informations and send them to us for you to check.
Rechargeable and no memory effect.
The weight is more lighter.
Smaller dimensions and can be customized.
Safer and more environmentally friendly, No heavy metals and hazardous substances.
BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .
WarningsDo not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
